OA-F Series
Principle The OA-F split air conditioning outdoor unit serves as the compression and condensation component of the air conditioning system. On-site, it is connected via copper pipes to OA-P or OA-P-WA/LA/KM fan coil units to form a complete refrigeration cycle. Utilizing a water-source heat pump principle, it achieves cooling in summer and heating in winter.
Related Submodels:
| Model | Btu/h | Power | Cooling input power | Heating input power |
|---|---|---|---|---|
| OA-9F | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-12F | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-18F | <96000 | AC220V/50Hz | 300-1100W | 1100-4500W |
| OA-24F | <96000 | AC220V/50Hz | 1100-4500W | 1100-4500W |
| OA-36F | <96000 | AC220V/50Hz | 1100-4500W | 1100-4500W |
| OA-24FS | <96000 | AC380V/50Hz | 1100-4500W | 1100-4500W |
| OA-36FS | <96000 | AC380V/50Hz | 1100-4500W | 1100-4500W |
| OA-48FS | <96000 | AC380V/50Hz | 1100-4500W | 1100-4500W |
Features
- Water-source cooling, eco-friendly refrigerant, high energy efficiency
- Compact structure, small dimensions
- Digital control, comprehensive protection
- Can be installed in bilges to save cabin space
- Designed for corrosion resistance, vibration resistance, and sway resistance
- Patented design, beware of counterfeits
Technical Specifications
- OA-24FS:
- S indicates power supply: 380V/50Hz/3Phase (default is 220V/50Hz/1Phase).
- 24 indicates model size, with cooling/heating capacity of 24,000 Btu/h.
- Suitable for water sources (rivers, lakes, seawater) with effective temperature range of 3–35°C.
- Condenser material: B10 copper-nickel tube / titanium tube.
- Refrigerant: R410A.

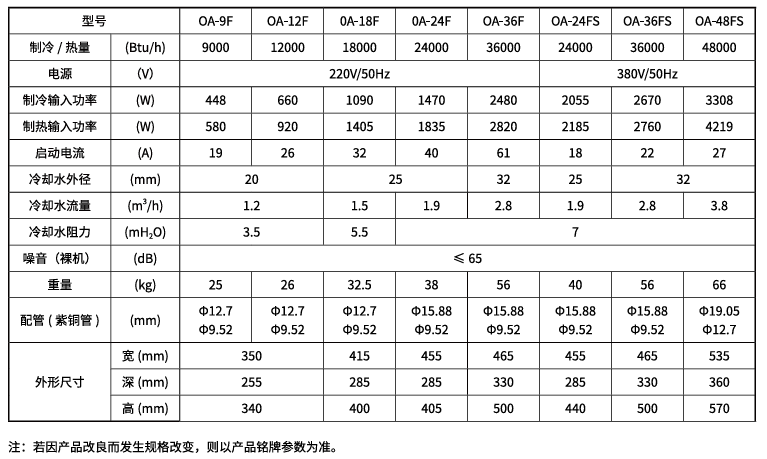

Specifications
