OA-BPZ Series
Principle: The OA-BPZ direct-expansion integrated inverter air conditioner combines the compressor, condenser, throttle device, and evaporator into a single unit. The system is also equipped with a solenoid four-way reversing valve, which allows switching between cooling and heating modes. This air conditioner operates based on the water-source heat pump principle, utilizing rivers, lakes, or seawater as the cold and heat source. In cooling mode, the rivers, lakes, or seawater cool and condense the unit, and the fan blows out cold air. In heating mode, the rivers, lakes, or seawater heat and evaporate the unit, and the fan blows out warm air.
| Model | Btu/h | Power | Cooling input power | Heating input power |
|---|---|---|---|---|
| OA-24BPZ | <96000 | -- | 1100-4500W | 1100-4500W |
| OA-36BPZ | <96000 | -- | 1100-4500W | 1100-4500W |
| OA-48BPZ | <96000 | -- | 1100-4500W | 1100-4500W |
Features
- Compact structure, small size, easy installation
- Low-frequency start-up with low current consumption, significantly reducing generator power requirements
- High and low pressure protection for the refrigeration system
- Anti-corrosion, anti-vibration, and anti-shake design
- Patented product, beware of counterfeits
Technical Specifications
OA-36BPZ:
BPZ indicates an integrated inverter air conditioner, 36 indicates the model size
Cooling/Heating Capacity: 36,000 Btu/h
Power Supply: 220V/50Hz/1-Phase
Applicable Water Source Temperature (Rivers, Lakes, Seawater): 4–35°C
Evaporator Material: Copper foil/Gold foil
Condenser Material: B10 Cupronickel tube/Titanium tube
Refrigerant: R410A

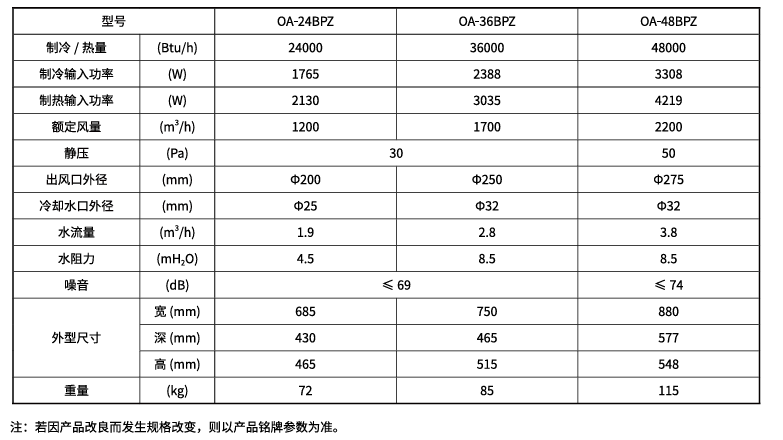

Specifications Parameters
