Axial DC Fans

This series of axial fans offers high efficiency and compact axial dimensions, ideal for space-constrained installations. Featuring a steel shaft and lightweight metal propeller, it ensures stable, spark-free operation for enhanced safety. Available in DC 12/24V versions, it supports diverse power requirements. The IP55 protection rating guarantees reliable performance in dusty or damp environments. Plastic flange mounts reduce weight and improve corrosion resistance. Combining durability, energy efficiency, and versatile application potential, this fan is perfect for industrial ventilation, equipment cooling, and other demanding settings—delivering optimal performance with practical design.


Related Submodels:
250
250/2S
250/2R
315/2
315/4
315/2S
350/4
350/2
400/2
400/4
450/2
450/4
450/R
500
500/S
560
560/S
600
630
ModelBlowing rateHead pressurePower rate Airflow
250100-15000m³‌/hr80-800pa0.09-5kW轴流
250/2S100-15000m³‌/hr80-800pa0.09-5kW轴流
250/2R100-15000m³‌/hr80-800pa0.09-5kW轴流
315/2100-15000m³‌/hr80-800pa0.09-5kW轴流
315/4100-15000m³‌/hr80-800pa0.09-5kW轴流
315/2S100-15000m³‌/hr80-800pa0.09-5kW轴流
350/4100-15000m³‌/hr800-1500pa0.09-5kW轴流
350/2100-15000m³‌/hr80-800pa0.09-5kW轴流
400/2100-15000m³‌/hr80-800pa0.09-5kW轴流
400/4100-15000m³‌/hr80-800pa0.09-5kW轴流
450/2100-15000m³‌/hr80-800pa0.09-5kW轴流
450/4100-15000m³‌/hr80-800pa0.09-5kW轴流
450/R100-15000m³‌/hr80-800pa0.09-5kW轴流
500100-15000m³‌/hr80-800pa0.09-5kW轴流
500/S100-15000m³‌/hr80-800pa0.09-5kW轴流
560100-15000m³‌/hr80-800pa0.09-5kW轴流
560/S100-15000m³‌/hr80-800pa0.09-5kW轴流
60015000-30000m³‌/hr80-800pa0.09-5kW轴流
630100-15000m³‌/hr80-800pa0.09-5kW轴流

Technical Features


  • This series of fans also features other characteristics such as: high efficiency, compact axial dimensions, and practicality.
  • Flange support: Plastic;
  • Shaft: Steel;
  • Jet propeller: Light metal, spark-free;
  • Motor: DC 12/24V;
  • Protection rating: IP55;

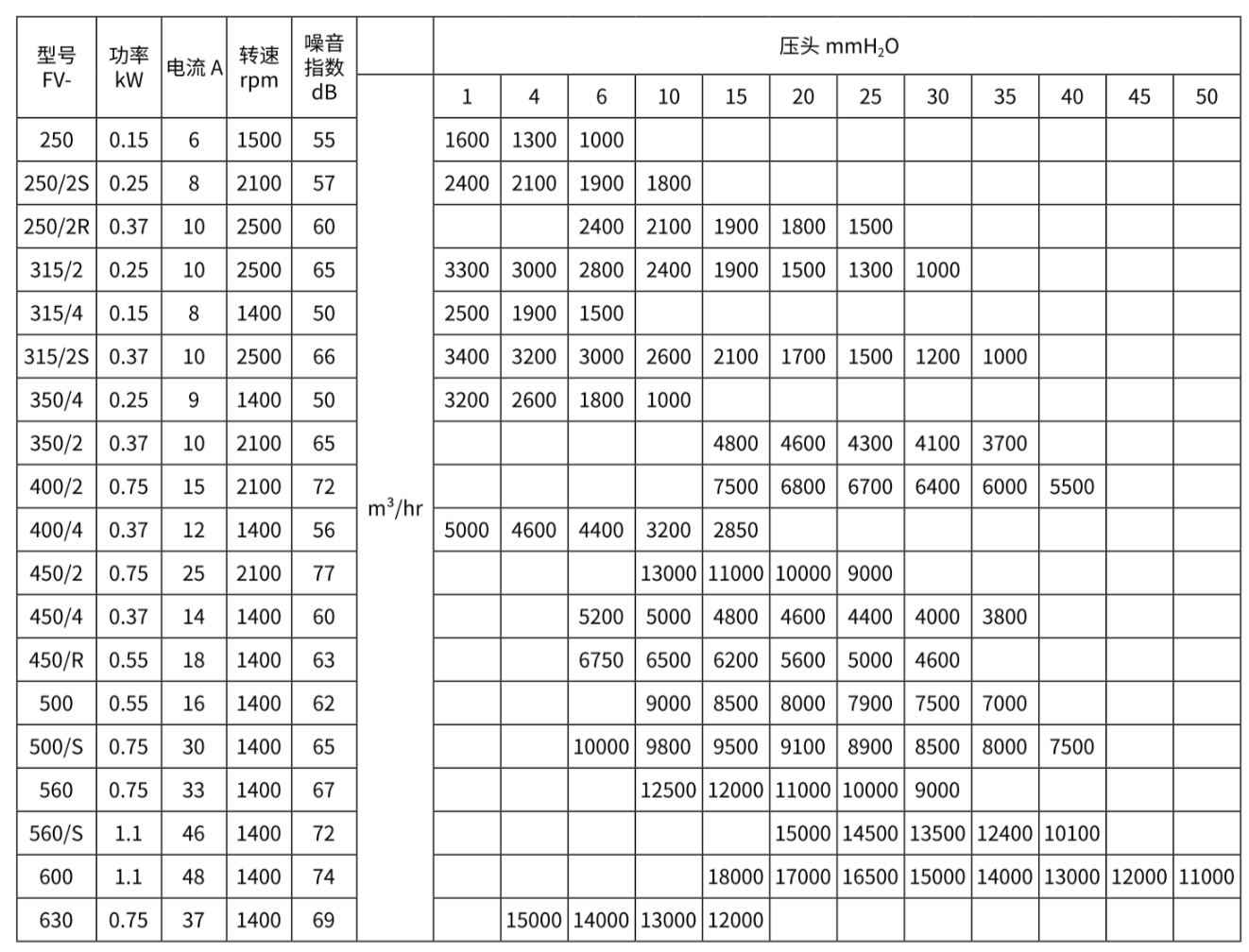

Parameters
