CCM Electric Pump
The TA series self-priming electric pump is engineered for demanding applications including seawater extraction, bilge drainage, fuel transfer, freshwater/seawater circulation, and anchor chain cleaning. Constructed with brass or stainless steel casing, stainless impeller, wear plate, and 316 stainless steel shaft for excellent corrosion and wear resistance. Available in DC12V, DC24V, AC220V, and AC380V for wide compatibility across marine and industrial environments. Achieves up to 7m self-priming without a foot valve—fast startup, quiet operation, low vibration. Offers superior versatility and performance compared to standard centrifugal pumps.
Related Submodels:
| Model | Flow rate | Pressure | Power rate |
|---|---|---|---|
| A60B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A80B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A90B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A990B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A990BR | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A992I | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A992IR | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A993I | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A993B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A994B(I) | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A995B(I) | 1-300L/m | 0.1-5bar | 0.05-5kW |
| A996B(I) | 1-300L/m | 5-10bar | 0.05-5kW |
| A997B | 1-300L/m | 5-10bar | 0.05-5kW |
| C16B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| C20B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| C22B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| C24B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| C41B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| T68B | 1-300L/m | 0.1-5bar | 0.05-5kW |
| T78B | 1-300L/m | 0.1-5bar | 0.05-5kW |
Technical Features
- Extract seawater and bilge water;
- Fuel allocation; Water supply;
- Allocate fresh water and seawater;
- Clean anchor chains
- Applications (Centrifugal pump, non-self-priming)
- Circulating water;
- Pump body material: Copper/Stainless steel;
- Impeller material: Stainless steel;
- Wear plate: Stainless steel;
- Shaft: 316 Stainless steel;
- Electrical Specifications: DC12V/DC24V/AC220V/AC380V.

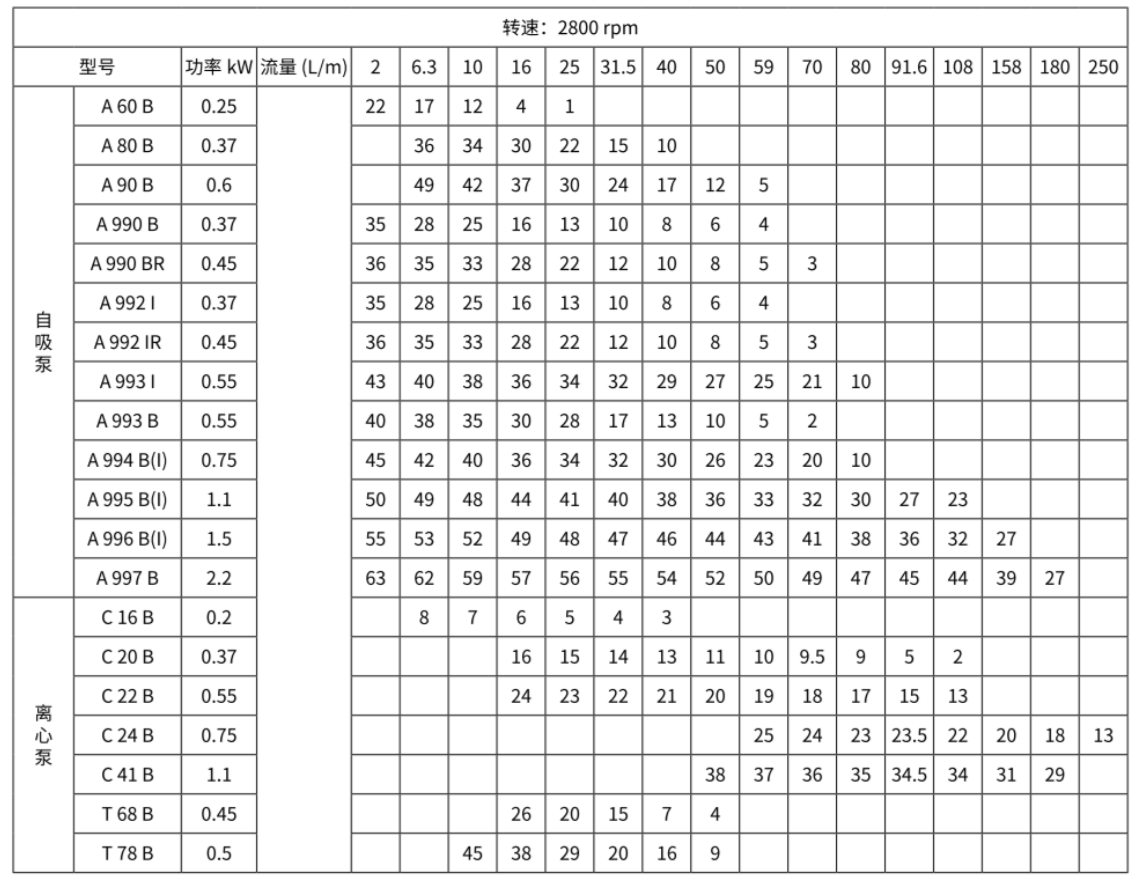

Parameters
