AM Series （60、80、90） Automatic Water Supply Device

The AM series is an automatic water supply unit integrated with a pressure tank, suitable for industrial, residential, and marine applications, providing stable water supply to showers, faucets, boilers, and other outlets.

Related Submodels:
AM60B/2
AM60B/8
AM80B/2
AM80B/5
AM90B/5
ModelFlow rate PressurePower rate
AM60B/21-300L/m0.1-5bar0.05-5kW
AM60B/81-300L/m0.1-5bar0.05-5kW
AM80B/21-300L/m0.1-5bar0.05-5kW
AM80B/51-300L/m0.1-5bar0.05-5kW
AM90B/51-300L/m0.1-5bar0.05-5kW

Technical Features


  • Pump body: Bronze
  • Impeller: Bronze
  • Wear plate: Bronze
  • Shaft: AISI 316 stainless steel, with mechanical seal
  • Motor: 12V or 24V DC; 230V AC, single phase; 230/400V, three phase
  • Tank capacity: 2L, 5L, 8L, or 24L (stainless steel tank available upon request)

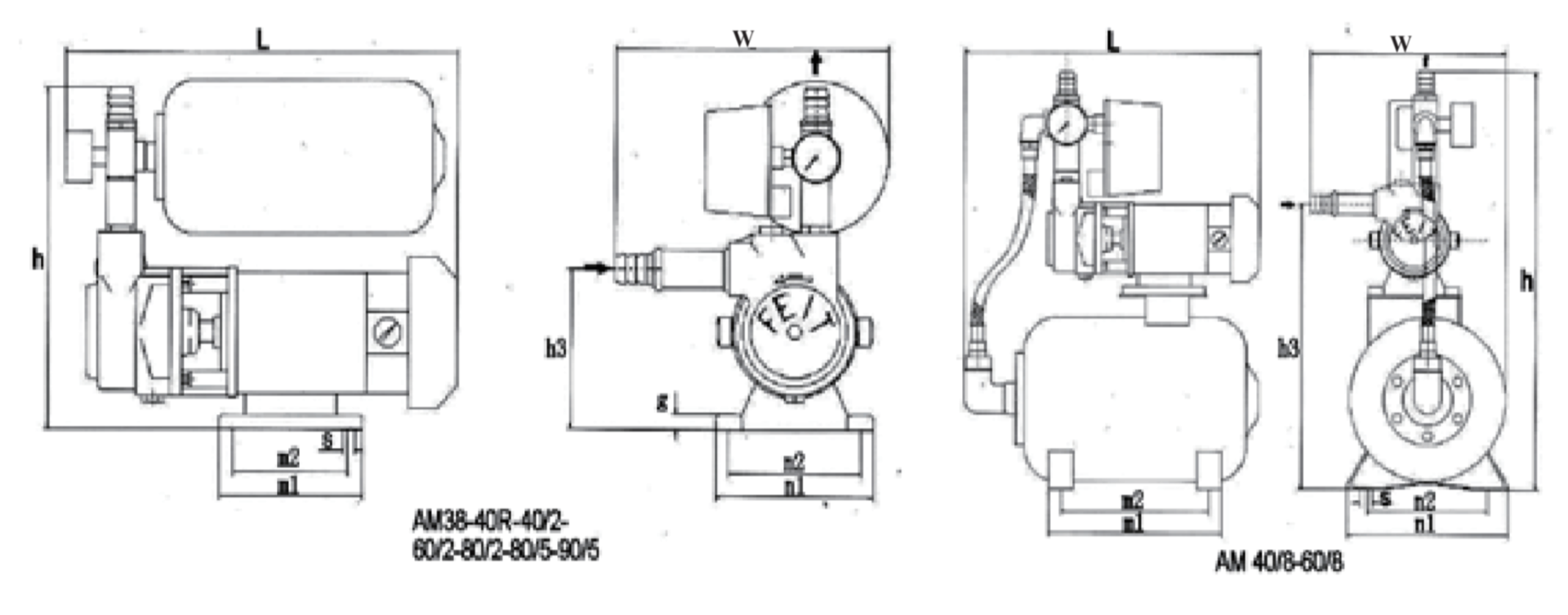

Structural Drawing
