OA-ZY Series
Principle: The OA-ZY yacht integrated air conditioning unit combines the compressor, condenser, throttling device, and evaporator of the refrigeration cycle into a cohesive system. Operating on the water-source heat pump principle, it utilizes rivers, lakes, or seawater as cooling or heating sources. During cooling mode, the water cools and condenses the unit, and the fan delivers cold air. During heating mode, the water heats and evaporates the unit, and the fan supplies warm air.
Related Submodels:
| Model | Btu/h | Power | Cooling input power | Heating input power |
|---|---|---|---|---|
| OA-3.5ZY | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-7ZY | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-9ZY | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-12ZY | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
| OA-16ZY | <96000 | AC220V/50Hz | 300-1100W | 300-1100W |
Features:
- Compact structure and small size.
- Utilizes low-noise EC fans, suitable for marine environments.
- Low starting current; soft-start module available for special requirements.
- Uses eco-friendly refrigerant with high cooling and heating capacity.
- Digital control with comprehensive protection functions.
- Designed with corrosion, vibration, and sway resistance.
Technical Specifications
Model: OA-18ZY
- 18: Denotes the model size, with a cooling/heating capacity of 18,000 Btu/h.
- Power Supply: 220V / 50Hz / 1 Phase
- Effective Operating Water Temperature (Rivers, Lakes, Seawater): 3°C to 35°C
- Condenser Material: B10 Cupronickel Tube / Titanium Tube
- Evaporator Material: Gold Fins / Copper Fins
- Refrigerant: R410A / R134a

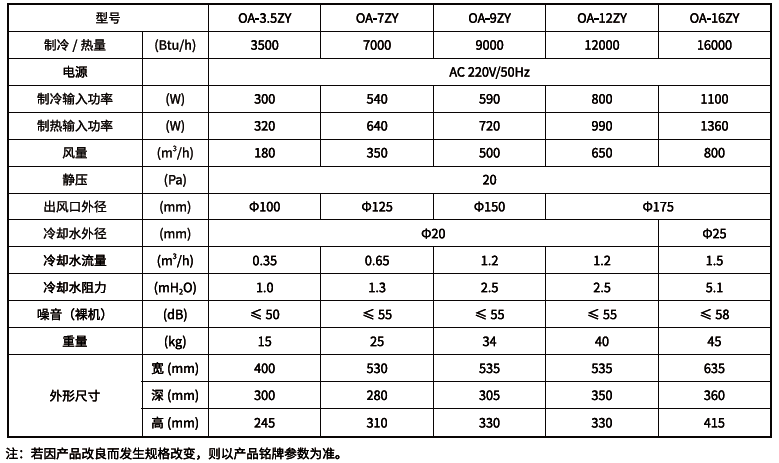

Specification:
