OA-DC24-1.5ZB Series
Principle: The OA-DC24-ZB is a cooling unit specifically designed for small unmanned vessels. This system integrates a compressor, condenser, throttling device, and evaporator into a cohesive unit to provide cooling and temperature reduction for cabin equipment. Utilizing rivers, lakes, or seawater as the cooling source, the device circulates water to absorb and carry away heat from the system, while the fan delivers cool air.
Related Submodels:
| Model | Btu/h | Power | Cooling input power | Heating input power |
|---|---|---|---|---|
| OA-DC24-3.5ZB | <96000 | DC24 | 300-1100W | -- |
| OA-DC24-1.5ZB | <96000 | DC24 | 300-1100W | -- |
Features:
- Compact cabinet structure with an aesthetically pleasing appearance and easy installation.
- Stepless energy regulation.
- High and low pressure protection for the refrigeration system.
- Built-in RS485 communication interface for remote control, supporting the MODBUS protocol.
- Patented product - beware of counterfeits.
Technical Specifications
- Model: OA-DC24-1.5ZB
- "ZB" denotes an integrated cabinet-type air conditioner.
- "1.5" denotes the specification/size.
- Cooling Capacity: 1500 Btu/h
- Power Supply: DC24V
- Effective Operating Water Temperature (Rivers, Lakes, Seawater): 10°C to 35°C
- Evaporator Material: Copper fin/Gold fin
- Condenser Material: B10 Cupronickel tube/Titanium tube
- Refrigerant: R134a

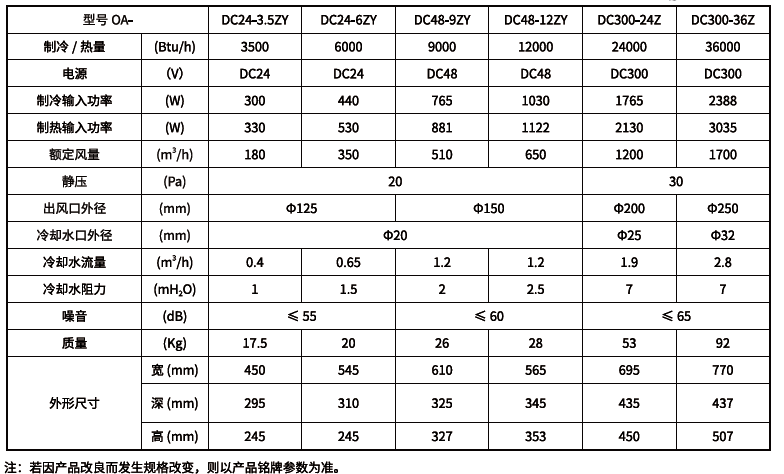

Specifications：
